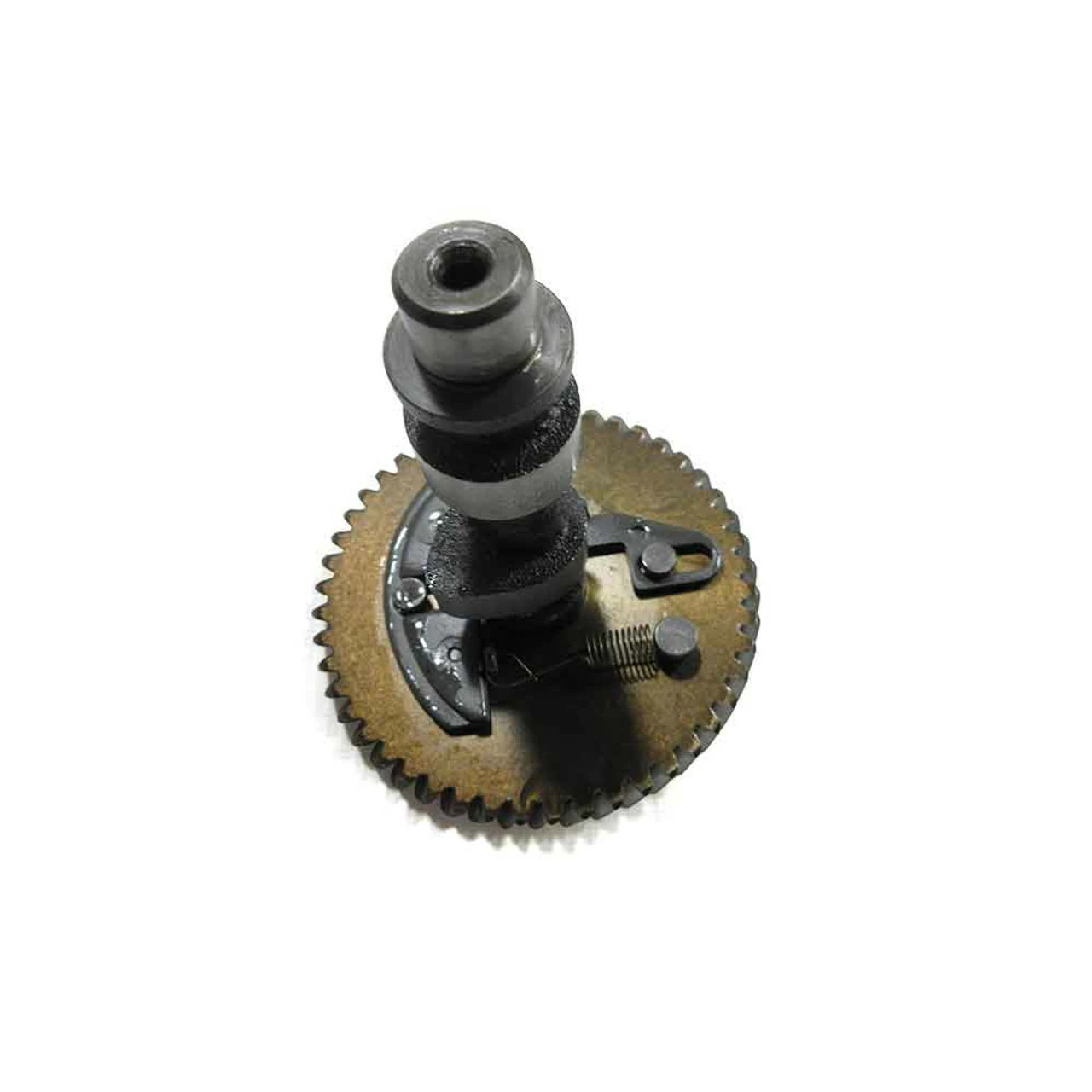

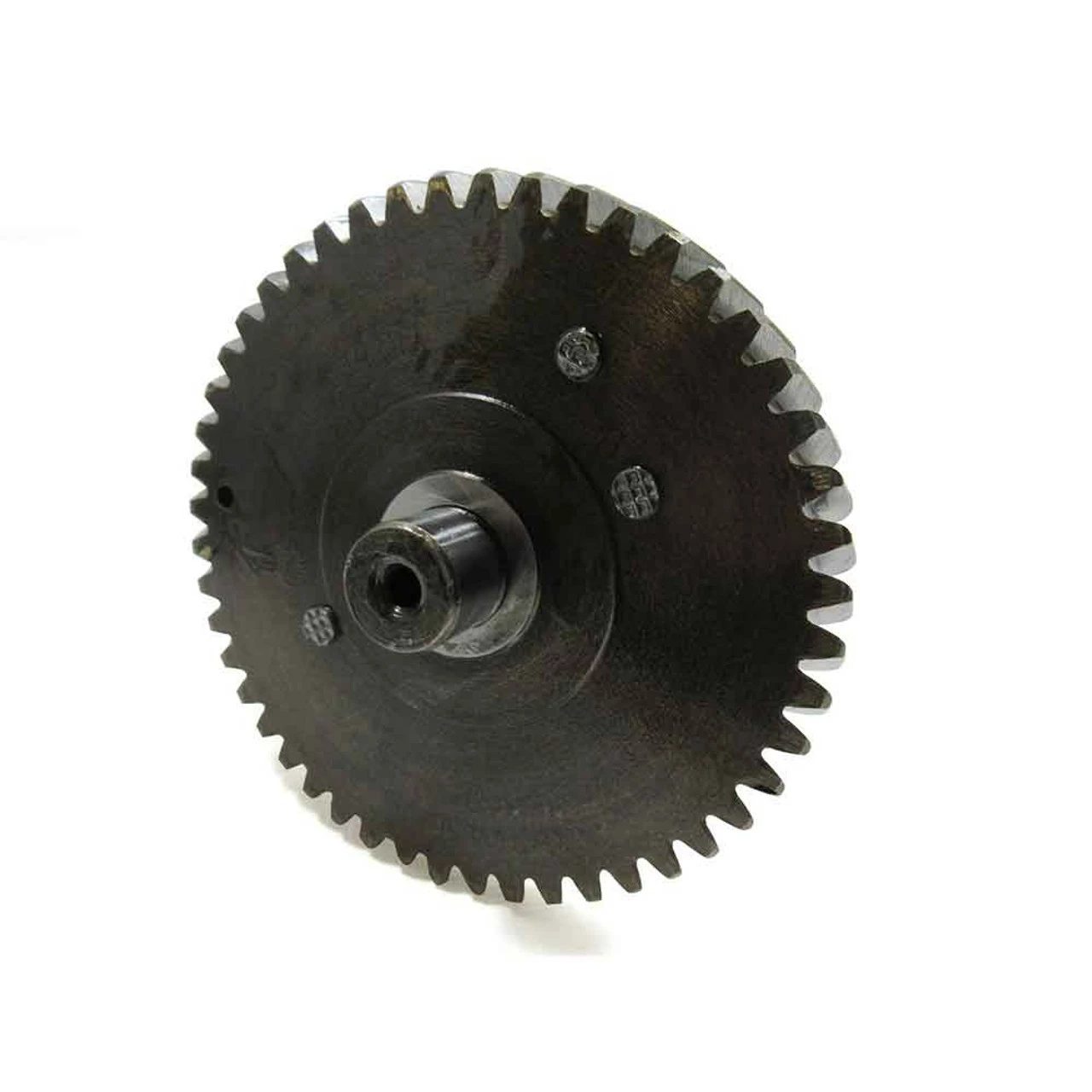

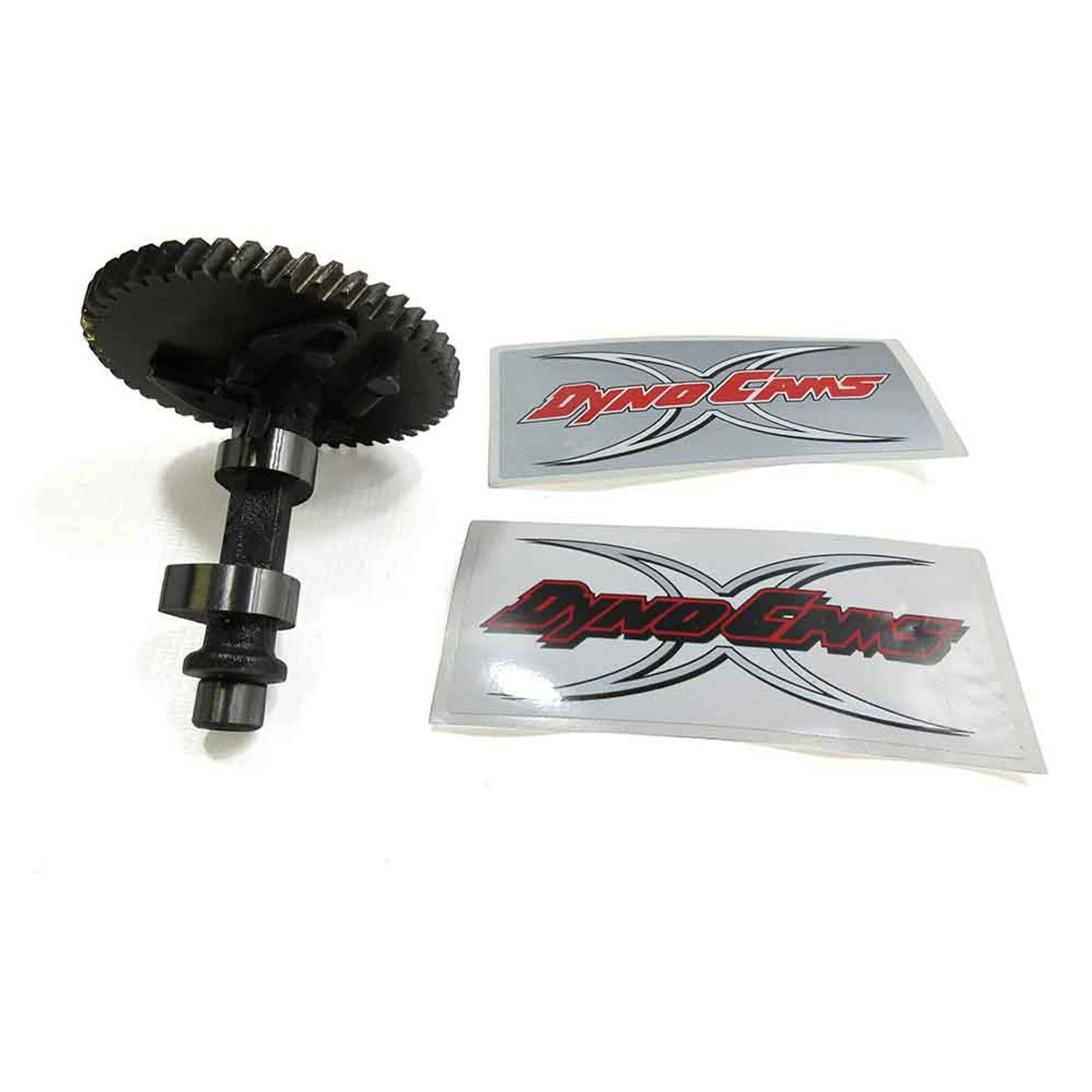

Buy 👏 DynoCams CL-216 Grind, Clone Core Cam ✨

The CL-216 cam has an aggressive ramp and requires an upgraded spring package, billet rod, and flywheel. A stock carb can be used with this cam.

The CL-216 cam has an aggressive ramp and requires an upgraded spring package, billet rod, and flywheel. A stock carb can be used with this cam.

Engine: 196cc OHV Clone
Recommended Class: Cheater Stock
Target (MAX) RPM: 7000
Spring Pressure (In / Ex): 18 lbs

Valve Timing:

INTAKE
LIFT: .246
Dur @ .050″: 216.6 Deg
C/L: 108 ATDC

EXHAUST
LIFT: .246
Dur @ .050″: 216.2 Deg
C/L: 108.4 BTDC

VALVE LASH: .003
CHECK LASH WHEN ENGINE IS COLD
RECOMMENDED IGN TIMING: 30 Deg BTDC
THIS CAM IS FLAME HARDENED HEAT TREATED

Processed and ground by the hard working employees of DynoCams in the USA.
